ANSI B16.5 150LBS Carbon Steel Pipe Fitting FF RF Weld Neck Reducing Flanges

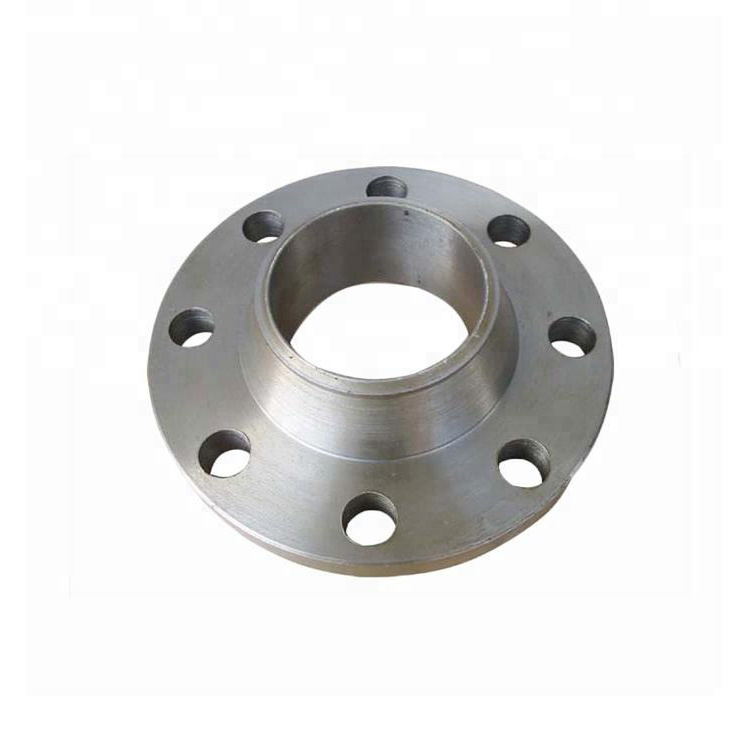

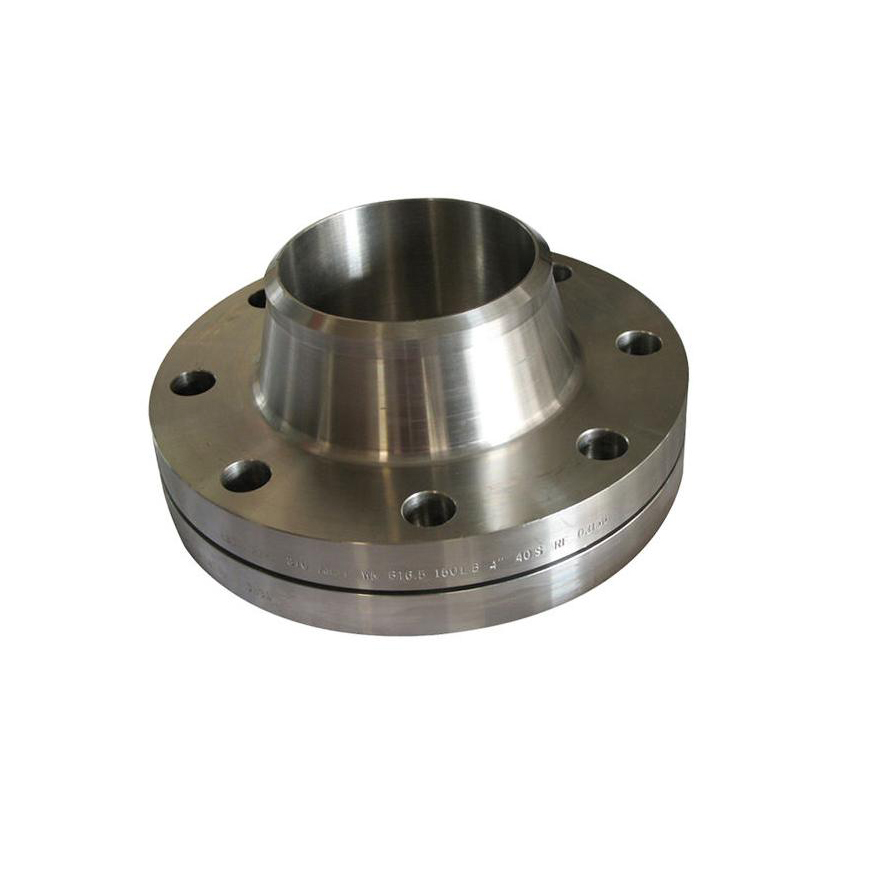

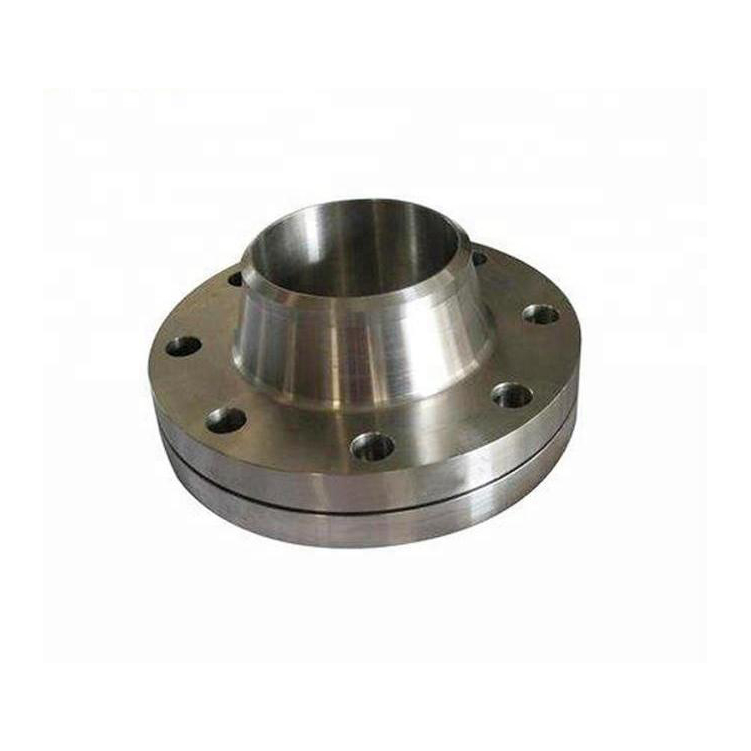

A carbon steel weld neck reducing flange is designed with a tapered hub on one end that fits the larger diameter pipe and a neck that accommodates the smaller diameter pipe. This design allows for a smooth transition between different pipe sizes, minimizing turbulence and pressure drop within the system. The flange also features a raised face or flat face with bolt holes for easy attachment to another flange or fitting using bolts.

Carbon steel, known for its strength, durability, and resistance to corrosion, is the primary material used in manufacturing weld neck reducing flanges. The material properties make these flanges suitable for use in demanding environments found in industries such as oil and gas, petrochemical, chemical processing, power generation, and water treatment.

Carbon steel weld neck reducing flanges are widely used in piping systems where there is a need to connect pipes of different sizes while ensuring a smooth flow of fluids and minimizing turbulence. They are particularly advantageous in high-pressure and high-temperature applications where the integrity of the joint is critical to maintaining system efficiency and safety.

These flanges are commonly employed in pipelines transporting various fluids, including water, steam, oil, gas, and chemicals. Their design helps in maintaining structural integrity and ensuring a secure and leak-free connection over extended periods of operation.

Installing carbon steel weld neck reducing flanges involves welding the flange to the larger diameter pipe and then welding the smaller diameter pipe to the neck of the flange. Proper welding techniques and procedures are crucial to ensure a strong and leak-tight joint. Careful alignment and adherence to welding standards and specifications are essential to prevent weld defects and ensure the reliability of the connection.

Manufacturers produce carbon steel weld neck reducing flanges in accordance with international standards such as ASME B16.5, ASME B16.47 Series A or Series B, and ASTM specifications. These standards ensure uniformity in dimensions, material properties, and performance characteristics, ensuring compatibility and reliability in various piping systems globally.

Strength and Durability: Carbon steel weld neck reducing flanges provide a robust and durable connection, suitable for high-pressure and high-temperature applications.

Smooth Flow Transition: They facilitate a smooth flow transition between different pipe sizes, minimizing pressure drop and turbulence within the piping system.

Reliability: These flanges offer a reliable and leak-resistant joint, crucial for maintaining the integrity and efficiency of fluid transportation systems.

Regular maintenance and inspection of carbon steel weld neck reducing flanges are essential to detect any signs of corrosion, wear, or leakage. Periodic inspections help identify potential issues early and ensure the continued performance and reliability of the flanges in service.

In conclusion, carbon steel weld neck reducing flanges play a crucial role in piping systems, providing a strong, reliable, and leak-resistant connection between pipes of different diameters. Their robust construction, compatibility with various fluids, and adherence to international standards make them indispensable components in industries requiring efficient fluid flow control and system integrity.
