ANSI B16.5 Class 150/300/600/900/1500/2500 Stainless Steel SS Threaded Flange
Construction and Design
Stainless Steel SS Threaded Flanges are typically crafted from stainless steel alloys such as 304 or 316 stainless steel. Key design features include:
Threaded Connection: Threaded flanges feature internal threads that allow them to be screwed onto external threads of pipes or valves directly. This design simplifies installation without requiring welding, making them ideal for applications that may require frequent disassembly.
Flange Face: Threaded flanges are available with flat or raised faces. Flat-faced flanges are suitable for use with gaskets, while raised-faced flanges provide additional sealing capability.
Bolt Holes: Bolt holes are uniformly spaced around the flange perimeter to secure it tightly to another flange or equipment. The number and size of bolt holes depend on the flange size and pressure rating.
Applications
Stainless Steel SS Threaded Flanges find application in various industries and sectors, including:
Low-Pressure Piping Systems: They are primarily used in systems where low-pressure sealing requirements can be met without the need for welding, such as cooling water lines, HVAC systems, etc.
Small Diameter Pipes: Due to their ease of installation and removal compared to welded flanges, threaded flanges are commonly used in smaller diameter pipe systems.
Non-Critical Applications: They are suitable for applications where high-pressure sealing is not required, or where the flexibility of easy disassembly and reassembly is advantageous.
Advantages
Stainless Steel SS Threaded Flanges offer several advantages:
Ease of Installation and Maintenance: Their threaded design eliminates the need for welding, simplifying installation, maintenance, and repair procedures.
Cost-Effectiveness: They are generally less expensive than welded flanges and reduce labor costs associated with installation.
Versatility: Threaded flanges can accommodate various pipe materials and are adaptable to different environmental conditions, providing reliable sealing and connection strength.
Conclusion
Stainless Steel SS Threaded Flanges are practical and versatile components in piping systems, particularly suited for low-pressure and non-critical applications. Their straightforward installation process, cost-effectiveness, and adaptability make them a popular choice across industrial and commercial projects, ensuring reliable performance and efficiency in piping systems.
Industry-Specific Attributes
| Standard | ANSI, DIN, JIS |
Other Attributes
| Place of Origin | Shanxi, China |
| Brand Name | XINBAODA |
| Model Number | Threaded Flanges |
| Product name | Threaded Flanges |
| Pressure | 150LB-2500LB |
| Material | tainless Steel, ASTM A182 F304/F304L/F316/F316L and ect. |
| Surface treatment | Chrome Plating, Zinc Plating,etc |
| Color | Customized Machining Parts |
| Technics | Forged Casting |
| Standard | ANSI B16.5 |
| Process | Ring Rolled |
| Packing | Wooden Pallets or Wooden Cases or As Customers' Requirements |
| Flange Type | Flange Type SO Flange,WN Flange, BLD Flange,W Flange,H Flange |

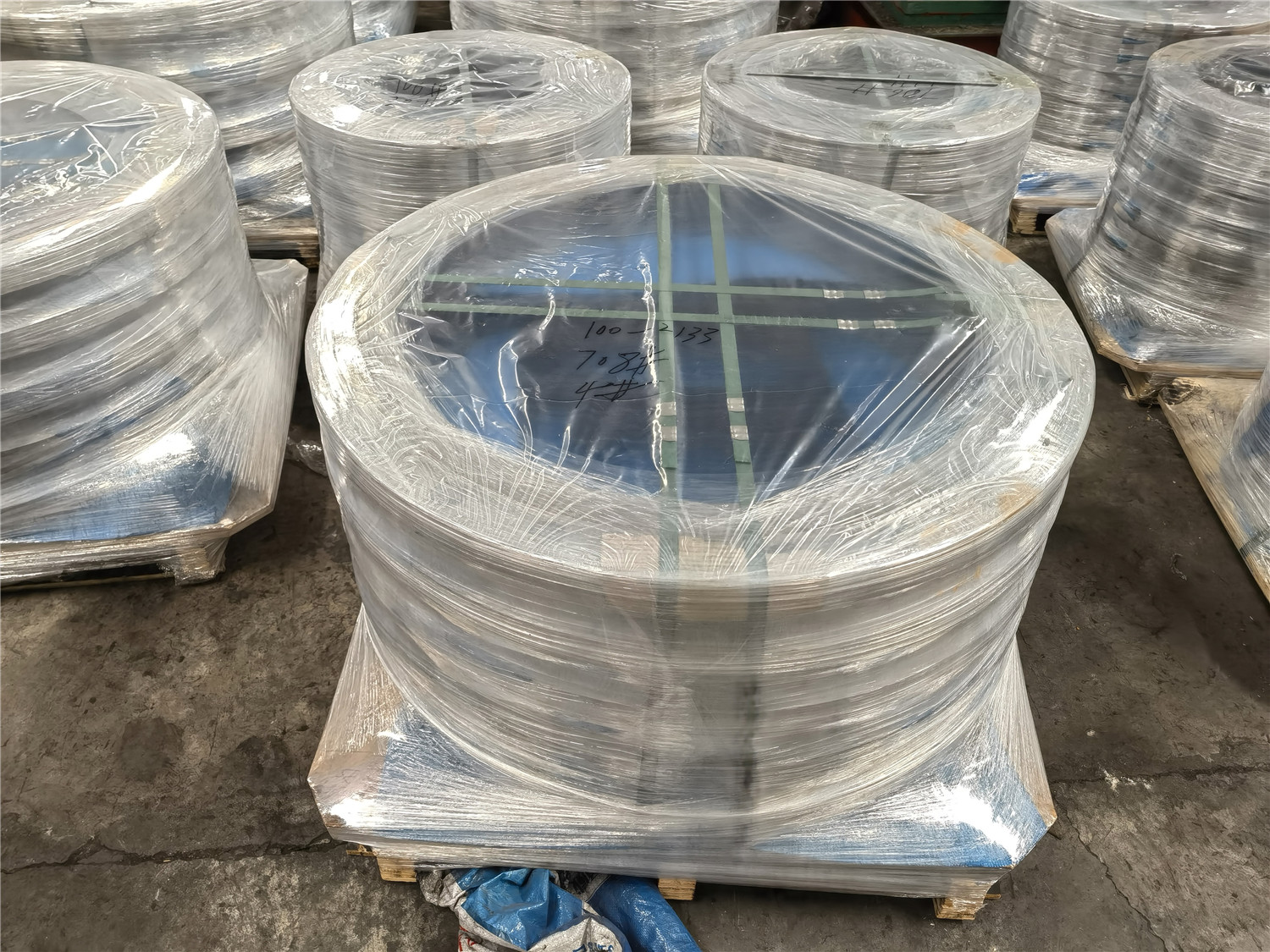

Packaging and Delivery
| Packaging Details | plywood or as per customers' requirements |
| Port | Qingdao |
Supply Ability
| Supply Ability | 100000 Piece/Pieces per Month Steel flange |
Lead Time
| Quantity (pieces) | 1 - 100 | > 100 |
| Lead time (days) | 20 | To be negotiated |

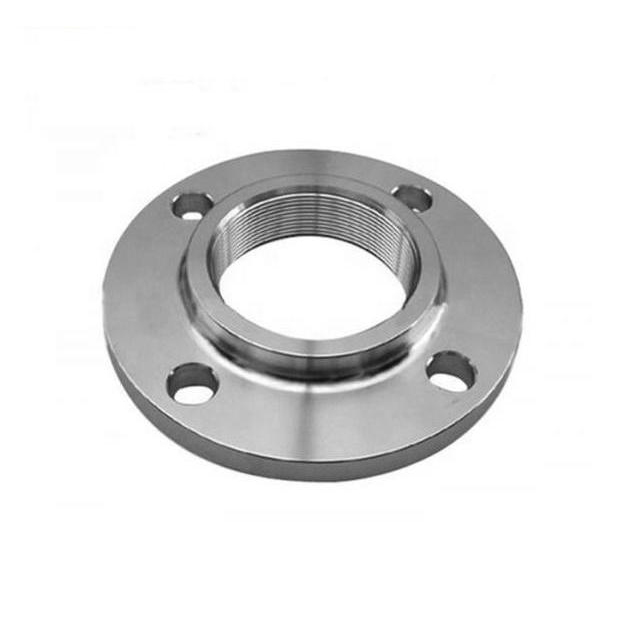

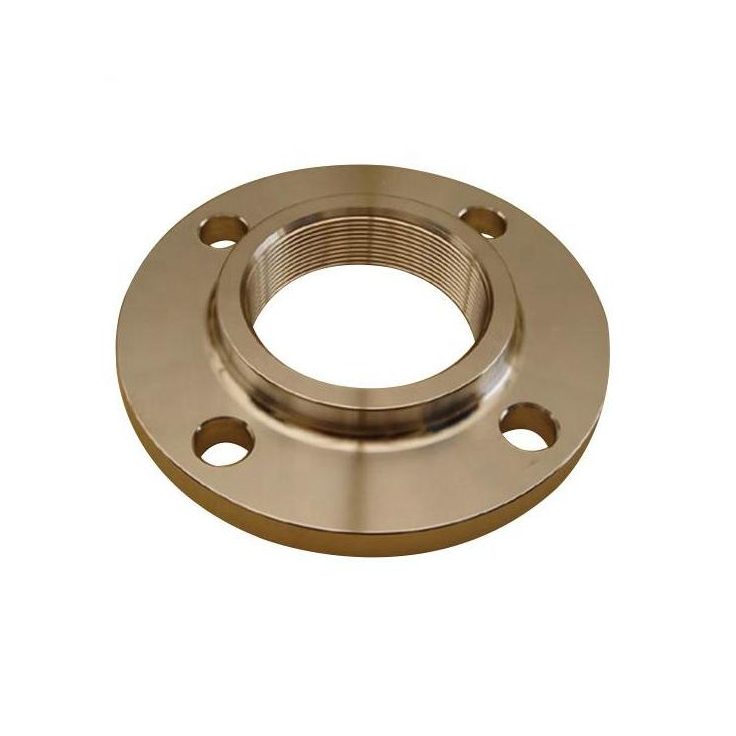

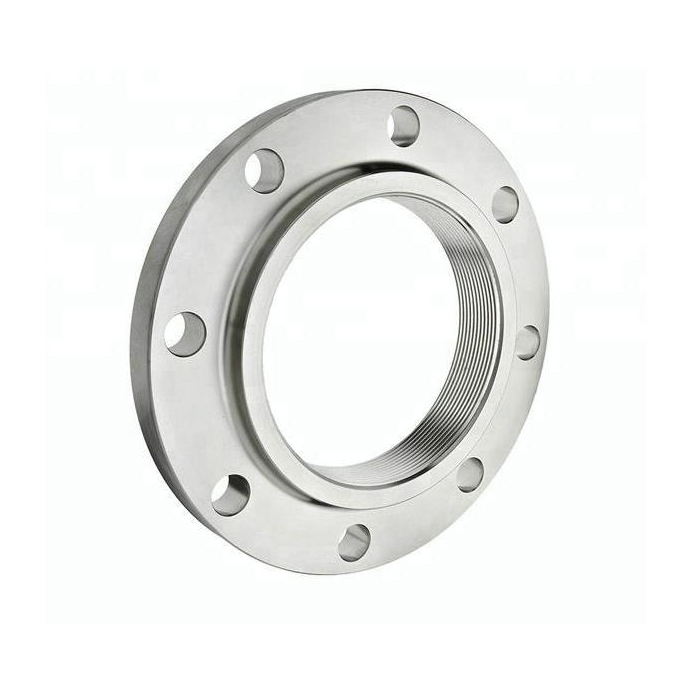

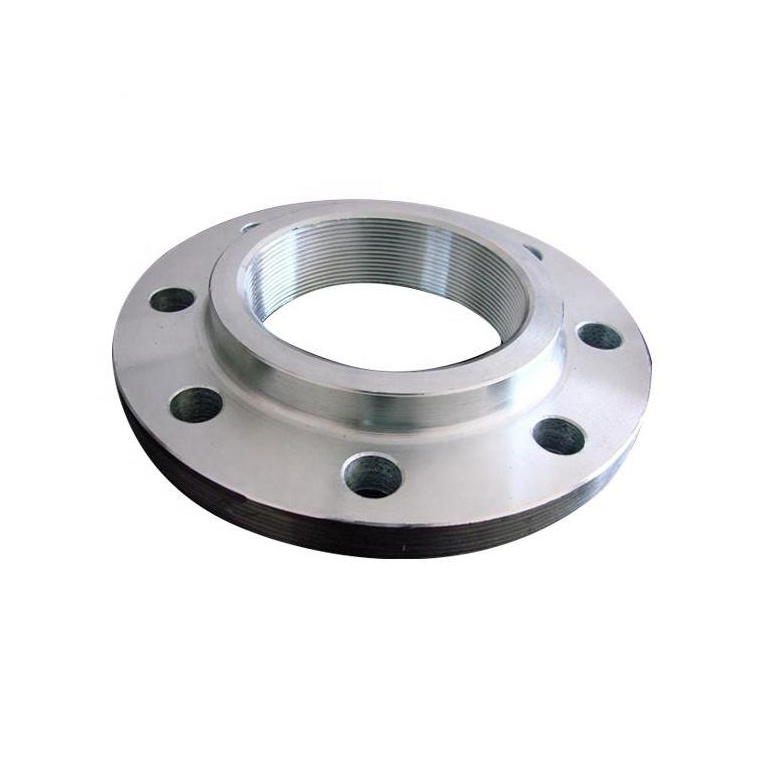

Product Display
