When you're diving into engineering projects, picking the right materials is a pretty big deal if you want things to last and work smoothly. Carbon Steel Flanges are pretty much a go-to because of their strength and flexibility, so you'll see them everywhere — from oil and gas setups to manufacturing lines and building sites. I spoke with John Miller, who’s been around the block for over 15 years at SteelWorks Corp, and he told me, “Choosing the right Carbon Steel Flanges isn’t just about saving a few bucks; it’s really about how they perform and if they’re a good fit for your system.”
Making smart choices when it comes to Carbon Steel Flanges can really make or break the success of your projects down the line. With so many options out there, it can get pretty overwhelming trying to figure out which ones suit your needs best. Things like understanding different grades of carbon steel, knowing why pressure ratings matter, or making sure the sealing works properly — having this kind of knowledge can make life a lot easier for engineers and buyers alike. In this article, I’ll share 10 key tips to help you pick Carbon Steel Flanges that don’t just meet industry standards but also boost the overall strength and efficiency of your setups.
Understanding Carbon Steel Flanges: Composition and Types
Carbon steel flanges are integral components in piping systems, serving as a crucial connection point for pipes, valves, and other fittings. Understanding the composition and types of carbon steel flanges is essential for making informed decisions for your projects. Typically composed of iron with carbon content ranging from 0.02% to 2.1% by weight, carbon steel offers a balance between strength and ductility. According to the American Society for Testing and Materials (ASTM), several grades of carbon steel flanges exist, such as ASTM A105 for forged carbon steel flanges and ASTM A36 for structural plates, each catering to specific industrial applications.
In terms of types, carbon steel flanges can be classified into several categories, including welding neck, slip-on, blind, and threaded flanges. Each type has its distinct design tailored for specific operational requirements. For instance, a welding neck flange is designed to provide maximum strength and support, often utilized in high-pressure applications, while slip-on flanges are easier to install and are commonly used in low-pressure systems. The choice between these types should be based on key factors such as pressure ratings, temperature tolerances, and the nature of the fluids being transported. Industry reports indicate that the demand for carbon steel flanges is projected to grow steadily, with an estimated annual growth rate of 3.2% through 2025, highlighting their essential role in mechanical and structural applications across various sectors.
10 Essential Tips for Choosing Carbon Steel Flanges for Your Projects
| Tip Number | Tip Description | Composition | Common Types |
| 1 | Determine the pressure rating of the flange. | Carbon Steel (ASTM A105) | Weld Neck Flange |
| 2 | Choose the right flange material based on the application. | Low Carbon Steel (ASTM A36) | Slip-On Flange |
| 3 | Consider the flange size and dimensions. | Carbon Steel (ASTM A694) | Blind Flange |
| 4 | Assess the working environment (temperature, pressure). | Mild Steel (S235) | Socket Weld Flange |
| 5 | Look for compatibility with pipes and fittings. | High Strength Carbon Steel (ASTM A high) | Threaded Flange |
Evaluating Flange Standards: ASME, ASTM, and API Compliance
When selecting carbon steel flanges for your projects, understanding the compliance with industry standards such as ASME, ASTM, and API is crucial. These standards ensure that the flanges you choose meet specific safety, reliability, and performance criteria. For instance, the ASME (American Society of Mechanical Engineers) standards provide guidelines on design, materials, and testing requirements for flanges used in pressure systems, while the ASTM (American Society for Testing and Materials) sets the specifications for the materials used, ensuring high-quality production. The API (American Petroleum Institute) standards are tailored for the oil and gas industry, focusing on the specific performance needs in these applications.
Tip: Always verify compliance with the relevant standards when purchasing flanges, as this will not only ensure your project’s safety but also its efficiency. Another essential aspect is the compatibility of the flange with existing piping systems, which is particularly relevant when working on upgrades or repairs. Double-checking the sizes, pressure ratings, and other specifications in relation to your applications can save time and resources.
Ensuring that you choose flanges that adhere to these standards can significantly impact the longevity and functionality of your project. Always consult the relevant code sections when evaluating options, and consider where these flanges will be used to mitigate any risks associated with improper usage. Make informed choices to enhance both the performance and integrity of your piping systems.
Assessing Pressure Ratings: Impact on Project Specifications

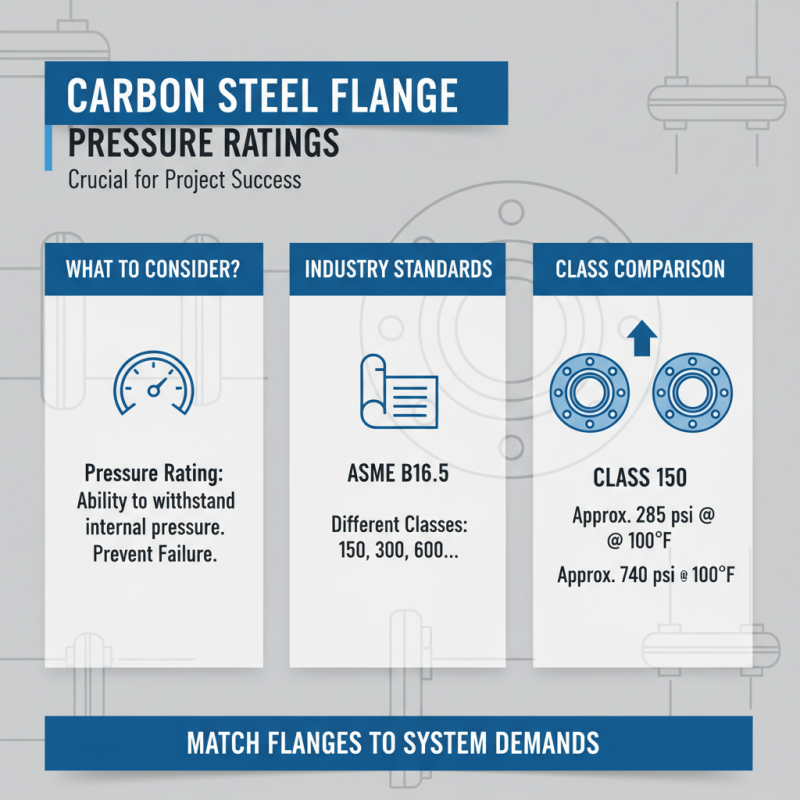

When selecting carbon steel flanges for your projects, one of the most crucial aspects to consider is the pressure rating. Pressure ratings are a reflection of the flange's ability to withstand internal pressure without experiencing failure, and they are designed according to established industry standards, such as ASME B16.5. These ratings categorize flanges into different classes, with Class 150, Class 300, and Class 600 being among the most commonly used. For example, the maximum allowable pressure for a Class 150 flange at 100°F is approximately 285 psi, while for a Class 300 flange, it increases to about 740 psi. Understanding these specifications is vital to ensure that the flanges can handle the operational demands of your system.
Moreover, project specifications often require detailed assessments of operating conditions, including temperature fluctuations and corrosive environments. According to industry reports, improper selection of flanges based on pressure ratings can lead to catastrophic failures and increased maintenance costs, potentially exceeding 30% of total operating expenditures. Additionally, rigorous testing and compliance with industry standards like ISO 9001 can help ensure that the selected flanges will perform reliably under pressure. Therefore, meticulous attention to pressure ratings in relation to your specific operational needs is essential for achieving both safety and efficiency in your projects.
Analyzing Flange Sizes and Dimensions for Optimal Fit

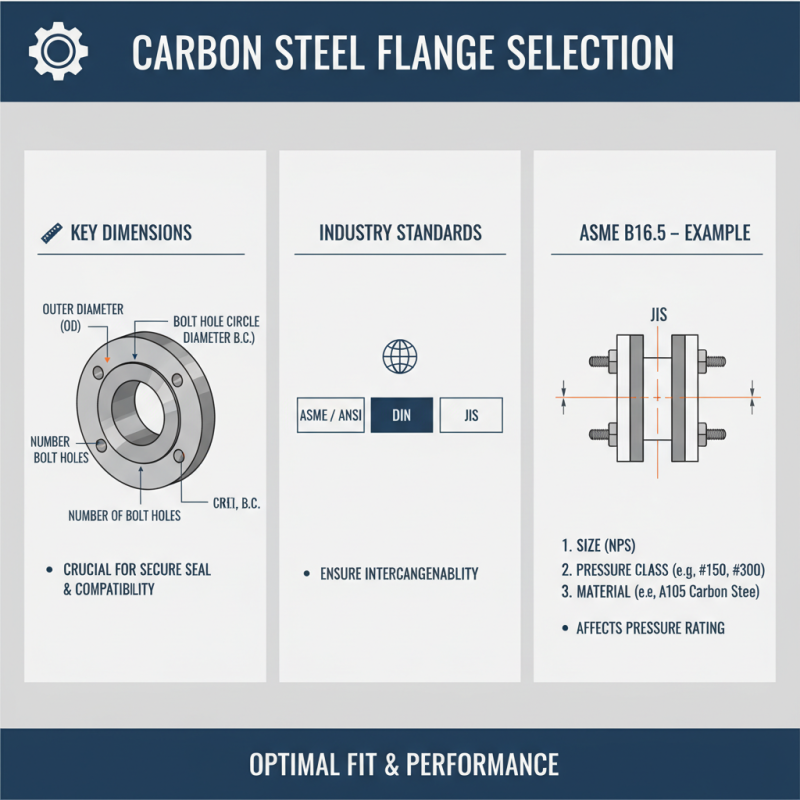

When selecting carbon steel flanges for industrial projects, understanding flange sizes and dimensions is crucial for ensuring optimal fit and performance. Flanges are available in various standards, including ASME, ANSI, and DIN, with each standard specifying different dimensions, pressure ratings, and material specifications. According to the American Society of Mechanical Engineers (ASME) standards, the key dimensions to consider include the flange's outer diameter, bolt hole circle diameter, and the number of bolt holes. These dimensions directly affect the flange’s ability to create a secure seal under pressure, as well as its compatibility with piping systems.
Additionally, the industry emphasizes the importance of maintaining proper tolerances when choosing flanges. For instance, a report by the American Society for Testing and Materials (ASTM) indicates that deviations from specified dimensions can lead to significant operational issues, such as leaks or structural failures due to misalignments. Selecting the correct flange size—factoring in wall thickness and schedule number of the connected pipe—is essential to achieve effective sealing and mechanical strength. Industry benchmarks suggest that the correct dimensioning can enhance the integrity of the connection by up to 30%, ultimately leading to safer and more efficient operations. Thus, making informed choices regarding flange sizes and their respective dimensions is vital for the overall success of a project involving carbon steel flanges.
Material Considerations: Corrosion Resistance and Durability Factors
When selecting carbon steel flanges for your projects, it's crucial to prioritize material considerations such as corrosion resistance and durability. Carbon steel, while known for its strength and hardness, can be susceptible to corrosion if not properly treated or coated. Flanges used in environments exposed to moisture, chemicals, or extreme temperatures must be crafted from high-quality carbon steel that has enhanced corrosion resistance properties. A proper protective coating or finish can significantly extend the life of the flanges, ensuring they withstand the rigors of their intended applications.
Durability factors also play a critical role in the selection process. The mechanical properties of carbon steel, including tensile strength and yield strength, determine how well the flanges will perform under various loads and stresses. It is essential to choose flanges that not only meet industry standards for strength but also exhibit the capability to maintain structural integrity over time. Considering the service environment, including potential exposure to corrosive elements and mechanical wear, will help you determine the most suitable material specifications for your carbon steel flanges, ultimately contributing to the reliability and longevity of your projects.
Durability and Corrosion Resistance of Carbon Steel Flanges
Cost Analysis: Balancing Quality and Budget Constraints
When it comes to selecting carbon steel flanges for your projects, cost analysis is critical to achieving the desired balance between quality and budget constraints. Carbon steel flanges are known for their durability and strength, making them a popular choice for a wide range of applications. However, these advantages come with varying price points based on factors such as manufacturing processes, material grades, and supplier reliability. To effectively balance quality and cost, it's essential to thoroughly evaluate different options and understand the long-term benefits associated with investing in higher-quality flanges.
One strategy for effective cost analysis is to assess the lifecycle costs of the flanges rather than just the initial purchase price. Lower-cost flanges may save you money upfront but could lead to increased maintenance and replacement expenses down the line due to performance issues or failures. By analyzing the total cost of ownership, including installation, maintenance, and potential downtime, you can make a more informed decision that ensures your project remains within budget while also securing the reliability and safety necessary for successful operations. This method allows for a more strategic investment in quality that ultimately pays off in the longevity and effectiveness of your project’s infrastructure.
Best Practices for Flange Installation and Maintenance Techniques
When installing carbon steel flanges, adhering to best practices is crucial for ensuring long-lasting performance and minimizing potential issues. The American Society of Mechanical Engineers (ASME) provides vital guidelines for flange installation that emphasize alignment and uniform bolt tightening. It is recommended to use a star pattern when tightening bolts to achieve an even distribution of pressure across the flange face, which helps prevent leakage and bolting failures. According to a report from the American Petroleum Institute (API), improper installation can lead to a staggering 30% increase in maintenance costs due to leaks and equipment damage, underscoring the importance of following precise installation protocols.
Ongoing maintenance of carbon steel flanges is another critical aspect of their lifecycle management. Regular inspections should be conducted to identify signs of corrosion, pitting, or gasket degradation. The National Association of Corrosion Engineers (NACE) suggests that proper coating and regular maintenance can extend the lifespan of flanges by up to 50%. It is also advised to implement a routine maintenance schedule that includes replacing gaskets and checking bolt tensions, as these proactive measures can prevent common issues that lead to unscheduled downtime and costly repairs. By prioritizing these best practices for installation and maintenance, projects utilizing carbon steel flanges can achieve optimal reliability and performance.

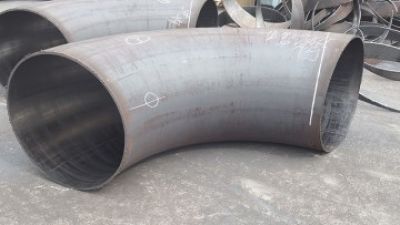

Maximizing Efficiency in Piping Systems with Carbon Steel A234 WPB SCH40 SCH80 Long Radius 90 Degree Elbow Products
In the realm of piping systems, achieving optimal performance often hinges on the components used, particularly when it comes to directional changes. Carbon Steel Elbows, specifically the A234 WPB SCH40 and SCH80 Long Radius 90 Degree Elbow products, play a crucial role in this aspect. These elbows are designed to facilitate seamless transitions between pipes, enabling effective routing of fluids in various applications. Their long radius design minimizes turbulence and enhances flow efficiency, making them ideal for systems that require higher fluid velocities or where pressure drop is a concern.
The versatility of carbon steel elbows extends beyond mere direction changes; they also serve as connectors between pipes of different diameters. This capability is particularly beneficial in complex piping layouts where varying pipe sizes are necessary. By utilizing A234 WPB elbows, engineers can create efficient, reliable systems tailored to the unique demands of their projects. The robustness of carbon steel ensures durability and longevity, making these fittings a preferred choice for both industrial and commercial installations. As such, incorporating these components into piping systems not only maximizes efficiency but also contributes to the overall integrity and performance of fluid transportation systems.
FAQS
: Carbon steel flanges are integral components in piping systems that serve as connection points for pipes, valves, and other fittings, essential for various industrial applications.
Carbon steel flanges are typically composed of iron with a carbon content ranging from 0.02% to 2.1% by weight, balancing strength and ductility.
Common types include welding neck, slip-on, blind, and threaded flanges. Each type is designed for specific operational requirements, with welding neck flanges offering maximum strength for high-pressure applications and slip-on flanges being easier to install for low-pressure systems.
Pressure ratings reflect a flange's ability to withstand internal pressure without failure. They are crucial for ensuring that the flanges can handle the operational demands of a piping system.
Some of the most commonly used classes include Class 150, Class 300, and Class 600, with each class corresponding to specific maximum allowable pressures.
Best practices include ensuring proper alignment, using a star pattern for bolt tightening, and achieving even pressure distribution to prevent leakage and bolting failures.
Regular inspections for signs of corrosion and gasket degradation, along with maintenance activities like gasket replacement and bolt tension checks, can significantly extend the lifespan of carbon steel flanges.
Improper selection can lead to catastrophic failures, increased maintenance costs, and potentially exceed operational expenditures significantly.
Adhering to a routine maintenance schedule that includes inspections and proactive replacements can prevent common issues and ensure the flanges perform reliably.
Prioritizing these best practices can enhance the reliability and performance of carbon steel flanges, minimizing unscheduled downtime and costly repairs.
Conclusion
When selecting Carbon Steel Flanges for your projects, understanding their composition and types is crucial, as it lays the foundation for effective application. Evaluating compliance with flange standards such as ASME, ASTM, and API ensures quality and safety. Additionally, assessing pressure ratings can significantly impact project specifications, while analyzing flange sizes and dimensions helps achieve an optimal fit.
Consideration of material factors, particularly corrosion resistance and durability, is essential for long-term performance. A comprehensive cost analysis can also assist in balancing quality with budget constraints. Finally, adhering to best practices in flange installation and maintenance techniques will promote longevity and reliability in your projects involving Carbon Steel Flanges.
