BS EN124 Standard Ductile Iron Recessed Casting Manhole Covers

Ductile iron manhole covers are a measure used to cover the wellhead, usually used on roads, parking lots or other public areas. Ductile iron manhole cover is made of ductile iron material, which is characterized by strong and durable, excellent compression performance, anti-slip, anti-theft, anti-noise, fire and so on.
Nodular cast iron is a kind of material composed of cast iron and alloying elements such as nickel and palladium. After spheroidization, it forms a kind of cast iron with high strength and corrosion resistance. Ductile iron manhole cover has high strength and durability, can withstand a lot of pressure and weight, to prevent the material in the well overflow or cause ground collapse.

    Product Detail

    Product Name Manhole cover
    Material Ductile iron GGG500/7,Gray iron,etc
    Dimensions As your demands
    Surface bitumen/epoxy painting/etc /or as your request
    Load capacity A15,B125,C250,D400,E600,F900
    Standard BS EN124-2: 2015
    Shape&Size Round: 300,400,500,600,700,etc.
    Square: 250*250,300*300,400*400,500*500,600600,700*700,etc.
    Shape double triangle, round, square, rectangular, octagonal types & etc.
    Color grey/black/as your request
    Weight 5-120kg/ as your requirement
    Feature anti-theft, Auti-rust, less noise, long time sevice,durable, easy to assemble & dismantle
    Application Sewer, Electronic, Sanitary, telecommunications, sewage, drainage, water, storm water, fire protection & etc.
    Package wooden pallets or steel pallets, or as your request
    Note OEM service is available
    Ductile Iron Manhole Cover and Grating EN124:1994 Material: GGG500-7
    Class Application Dimension (Frame mm)
    A15 Pedestrians, Pedal Cyclists Dia760
    B125 Foot ways, Pedestrians, Car parks 290*290, dia800 ...
    C250 Kerbside channel of roads 700*700, 600*800 ...
    D400 Road, hard shoulders etc. 850*850, 920*920 ...
    E600 Docks, aircraft pavements etc. as per your demands
    F900 Aircraft pavements etc. as per your demands

    Product Parameter

    Class Frame size (mm) Clear opening (mm) Depth Unit weight (kg) Specification
    (mm)
    D400 400*400 300*300 75 20 ductile iron; single seal; closed key hole
    D400 500*500 400*400 100 29
    D400 550*550 450*450 100 37
    D400 600*600 500*500 100 42
    D400 700*700 600*600 100 58
    D400 800*800 700*700 100 77
    D400 900*900 800*800 100 99
    D400 1000*1000 900*900 100 149
    D400 1100*1100 1000*1000 100 180

    Product Display

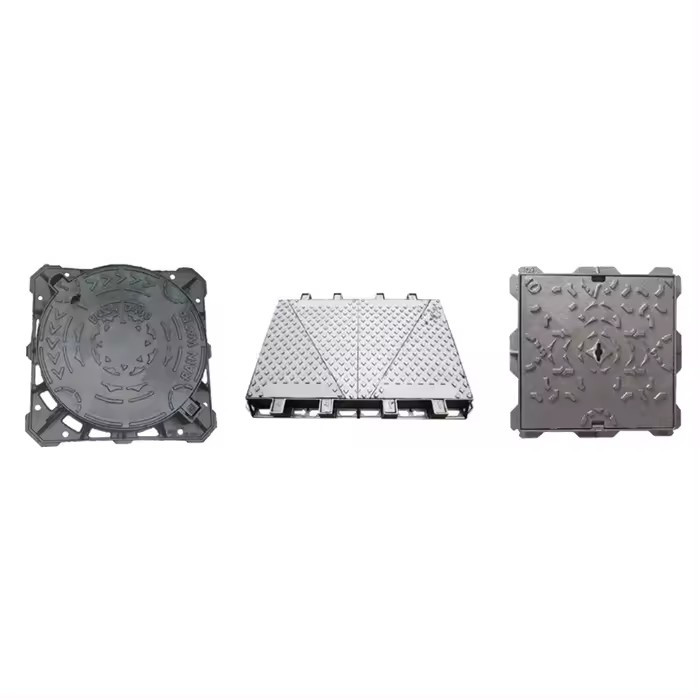

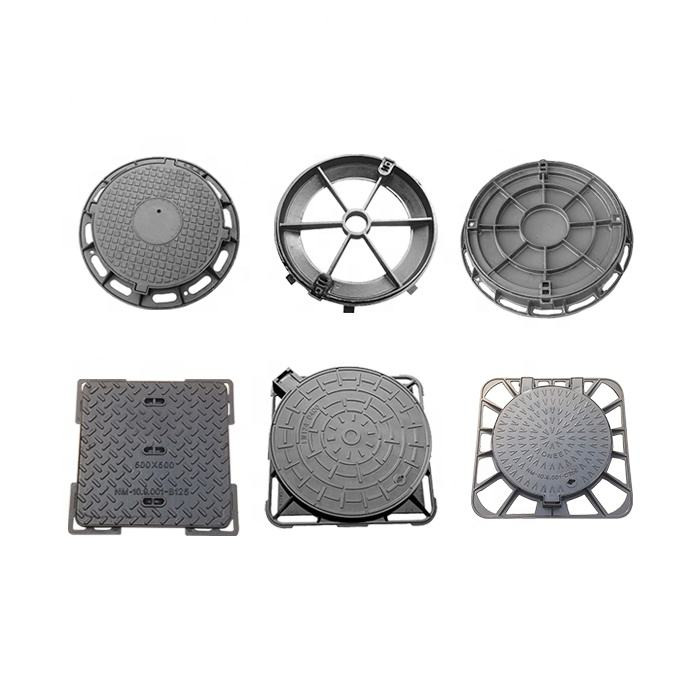

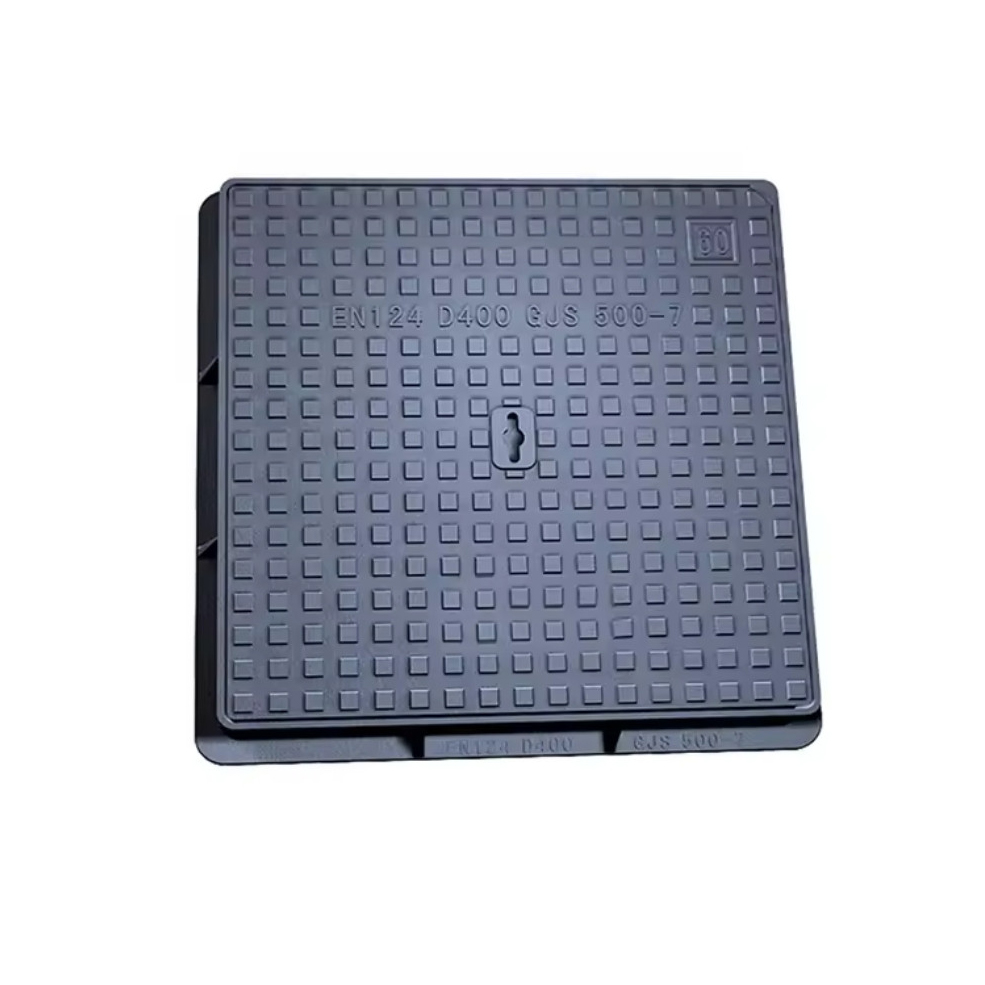

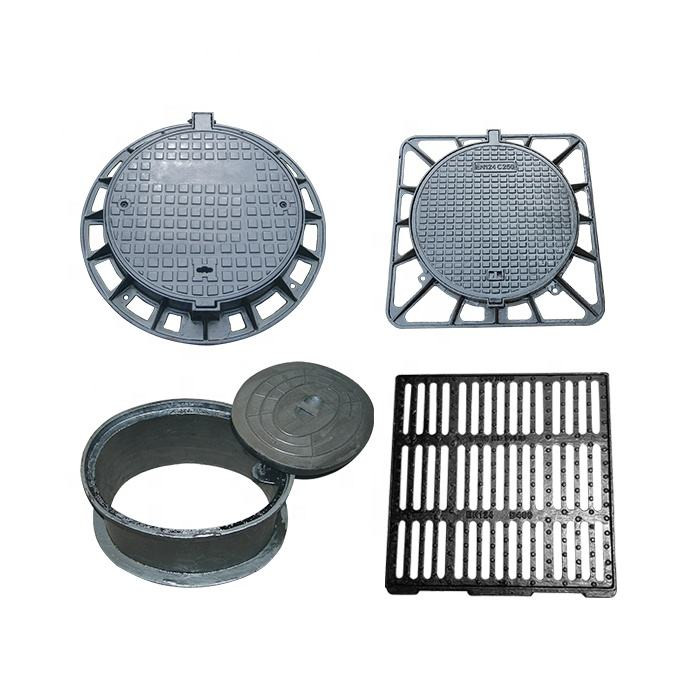

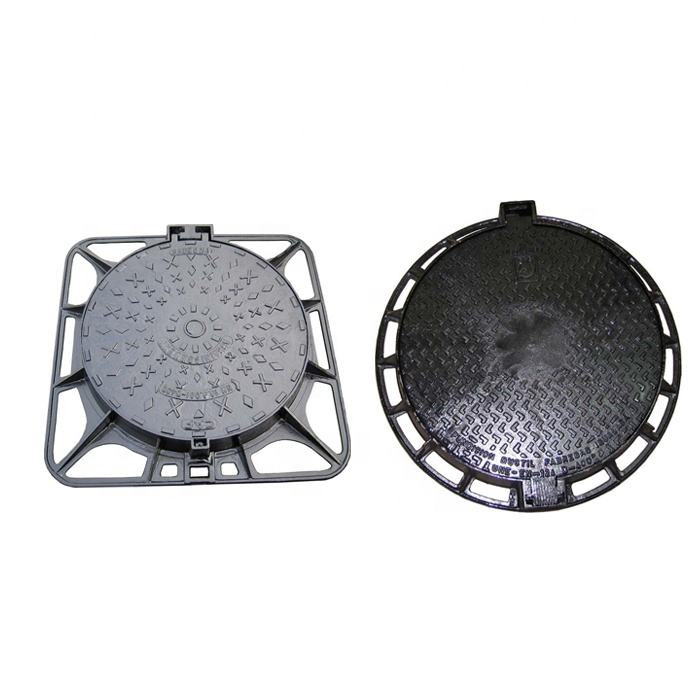

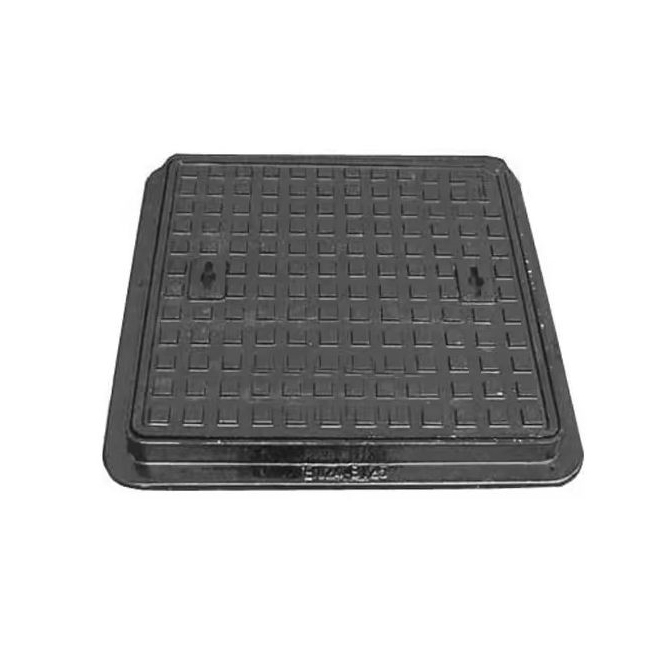

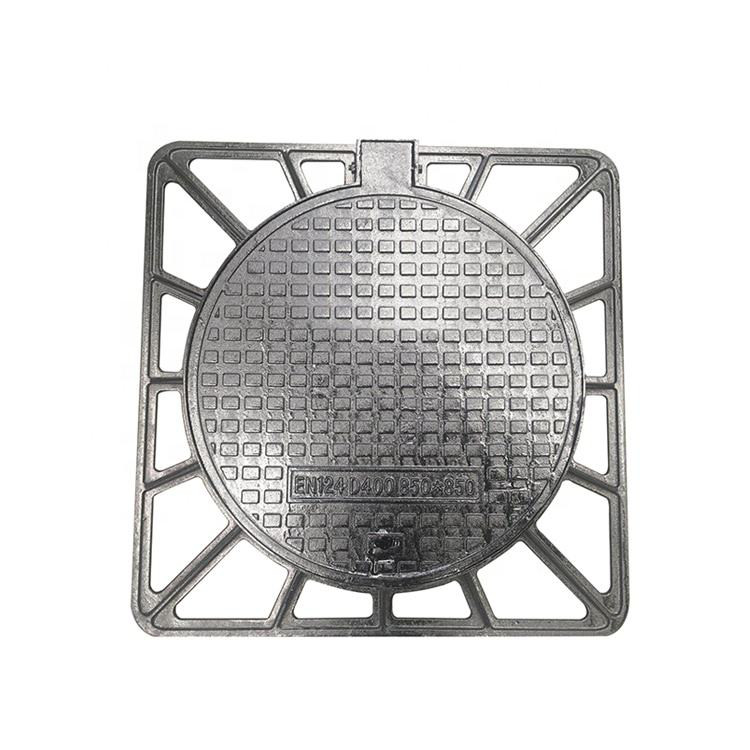

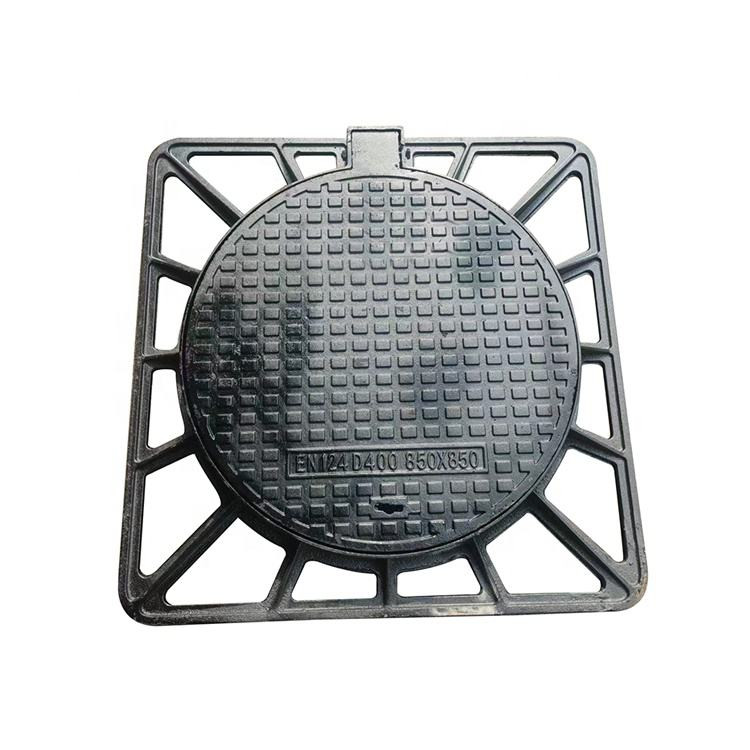

    Manhole covers (2)9cm
    Manhole covers (3)o95
    Manhole covers (4)fnb
    Manhole covers (5)wp1
