Cast Iron Ductile Iron Fuel Tank Rain Water Manhole Cover with Manhole key

Ductile iron manhole cover is a type of ductile iron product. Ductile iron obtains spherical graphite through spheroidization and inoculation treatment, effectively improving the mechanical properties of cast iron, especially improving plasticity and toughness, resulting in higher strength than carbon steel. Ductile iron is a high-strength cast iron material developed in the 1950s, with comprehensive properties similar to steel. Based on its excellent performance, it has been successfully used to cast some parts with complex stress, high requirements for strength, toughness, and wear resistance. Ductile iron has rapidly developed into a widely used cast iron material, second only to gray iron. The so-called "replacing steel with iron" mainly refers to ductile iron.

    Industry-Specific Attributes

    Product Name Manhole cover
    Material Ductile iron GGG500/7,Gray iron,etc
    Dimensions As your demands
    Surface bitumen/epoxy painting/etc /or as your request
    Load capacity A15,B125,C250,D400,E600,F900
    Standard BS EN124-2: 2015
    Shape&Size Round: 300,400,500,600,700,etc. Square: 250*250,300*300,400*400,500*500,600600,700*700,etc.
    Shape double triangle, round, square, rectangular, octagonal types & etc.
    Color grey/black/as your request
    Weight 5-120kg/ as your requirement
    Feature anti-theft, Auti-rust, less noise, long time sevice,durable, easy to assemble & dismantle
    Application Sewer, Electronic, Sanitary, telecommunications, sewage, drainage, water, stormwater, fire protection & etc.
    Package wooden pallets or steel pallets, or as your request
    Note OEM service is available
    Ductile Iron Manhole Cover and Grating EN124:1994 Material: GGG500-7
    Class Application Dimension (Frame mm)
    A15 Pedestrians, Pedal Cyclists Dia760
    B125 Footways, Pedestrians, Car parks 290*290, dia800 ...
    C250 Kerbside channel of roads 700*700, 600*800 ...
    D400 Road, hard shoulders etc. 850*850, 920*920 ...
    E600 Docks, aircraft pavements etc. as per your demands
    F900 Aircraft pavements etc. as per your demands

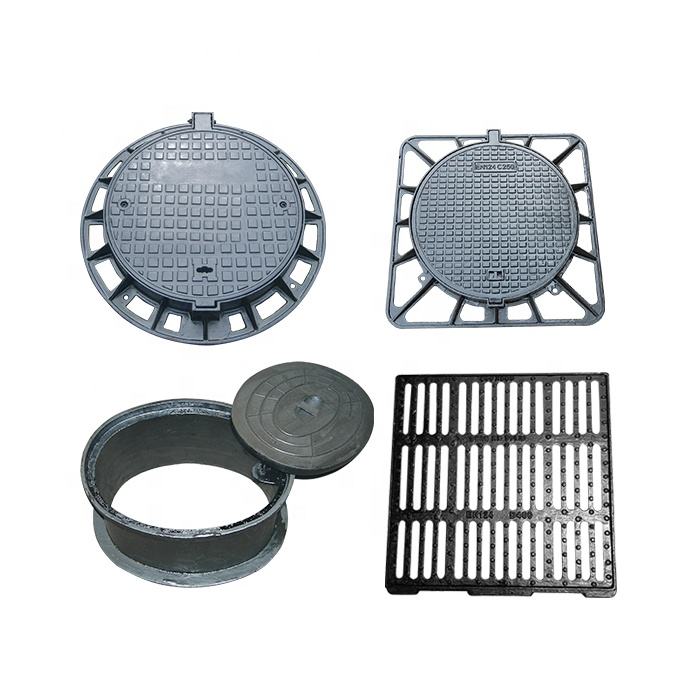

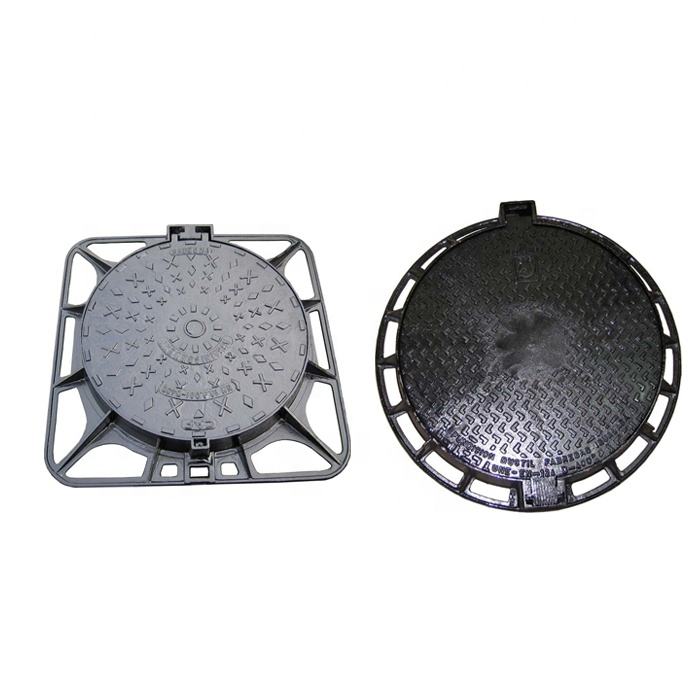

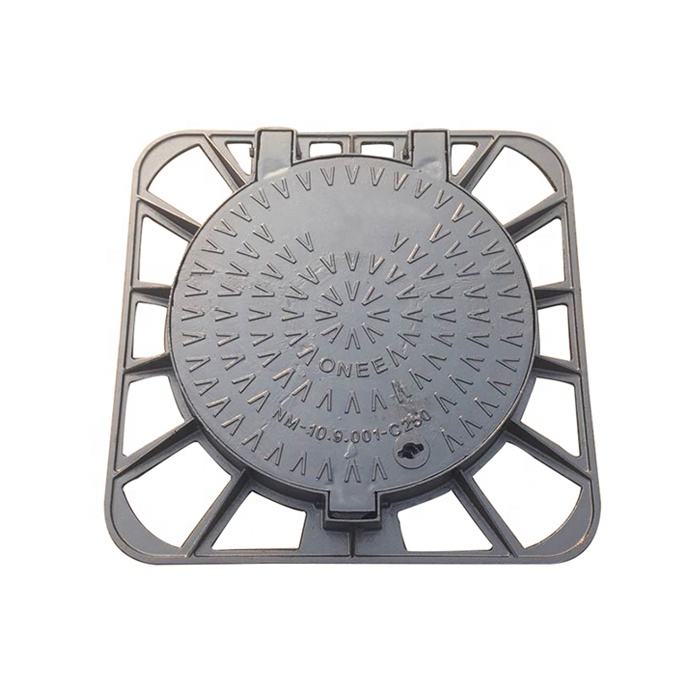

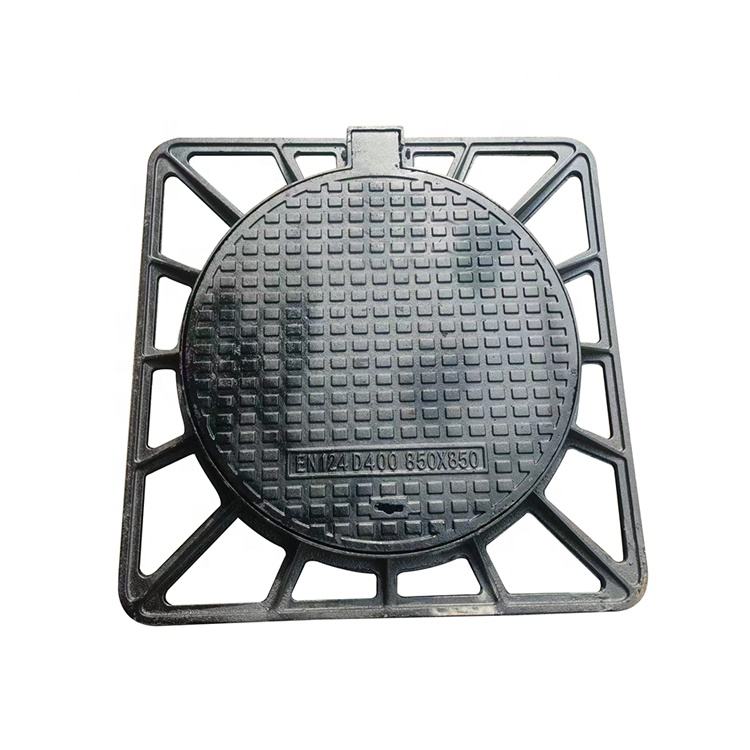

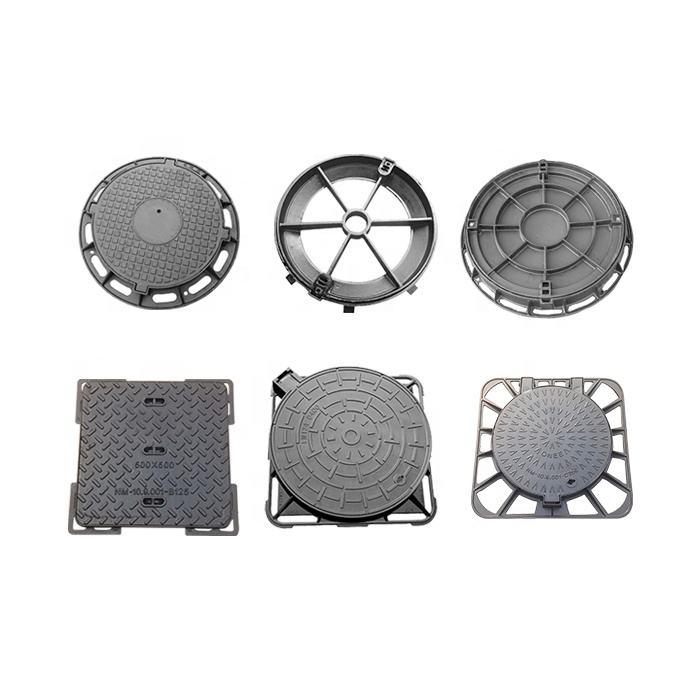

    Product Display

    Cast Iron Ductile  (1)v4w
    Cast Iron Ductile  (2)6o2
    Cast Iron Ductile  (3)qpe
