Electric Motor Horizontal End Suction Centrifugal Marine Drainage Pump

Application
Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rate.
Suitable to pump clean water or non-aggressive liquid charged with small solid impurity. To be used in flow irrigation system in gardening, agriculture and industrial fittings.

Operating conditions
Liquid temperature up to 60 degree
Ambient temperature up to 40 degree
Total suction lift up to 9m
Continuous duty

Motor
Two-pole induction motor (n=2850r. P. M)
Insulation Class B
Protection IP44

Material
Pump body: Cast Iron
Pump support: Cast iron
Motor housing: Aluminum
Impeller: Brass, PPO, or Plastic
Shaft with rotor: 45# steel, SS if request
Mechanical seal: Carbon/Ceramic

    Product Detail

    Place of Origin Shanxi, China
    Power Source Electric
    Structure Single-stage Pump
    Brand Name XINBAODA
    Model Number pump
    Cable Length 1"X1"
    Application Clarified Water Pump, Centrifugal Pump
    Material Cast Iron or Stainless Steel
    Pump Accessories Trailer, Silence-Box, etc
    Motor Type Explosion-Proof Motor or General Motor
    Pump Spare Parts Pump Casing, Impeller, Seal, etc
    Usage Pump, Pumps, Circulating Pump, Marine Pump
    Fuel Electric,Diesel,Power
    Standard or Nonstandard Standanrd
    Mounting Height Suction Centrifugal
    Color Blue

    Packaging and Delivery

    Packaging Details Exporting plywood case
    Port Xingang, Qingdao

    Supply Ability

    Supply Ability 1000 Set/Sets per Month Centrifugal Pump

    Product Display

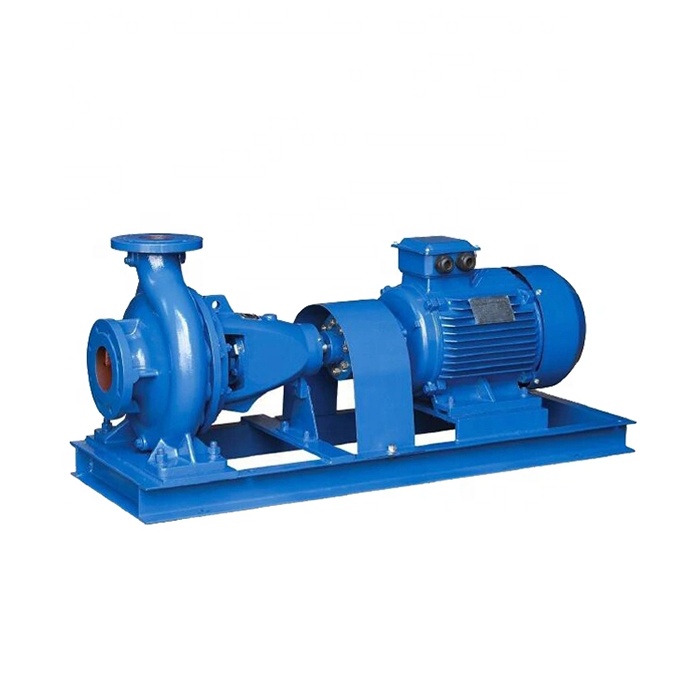

    Motor Horizontal End (2)j8b
    Motor Horizontal Ends (2)pql

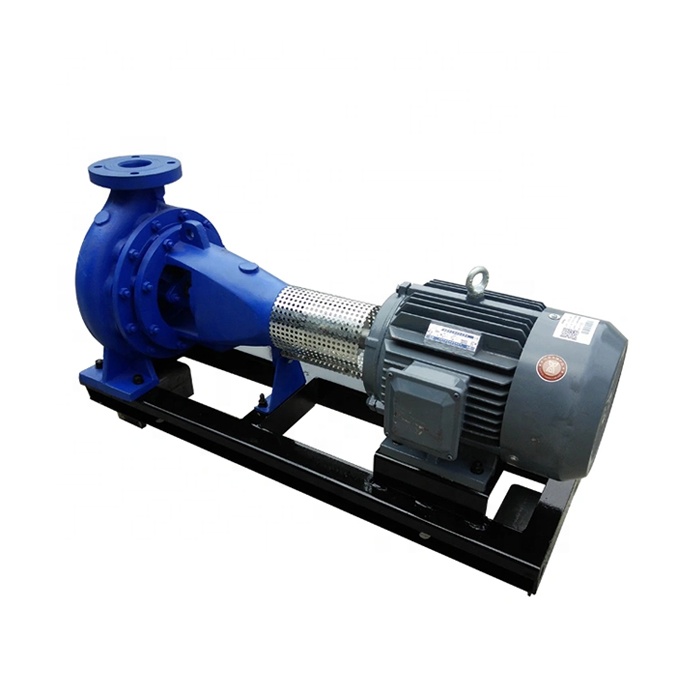

    Motor Horizontal Ends (3)c4p
