Factory F316 Stainless Steel Weld Neck Flange Forged Flange

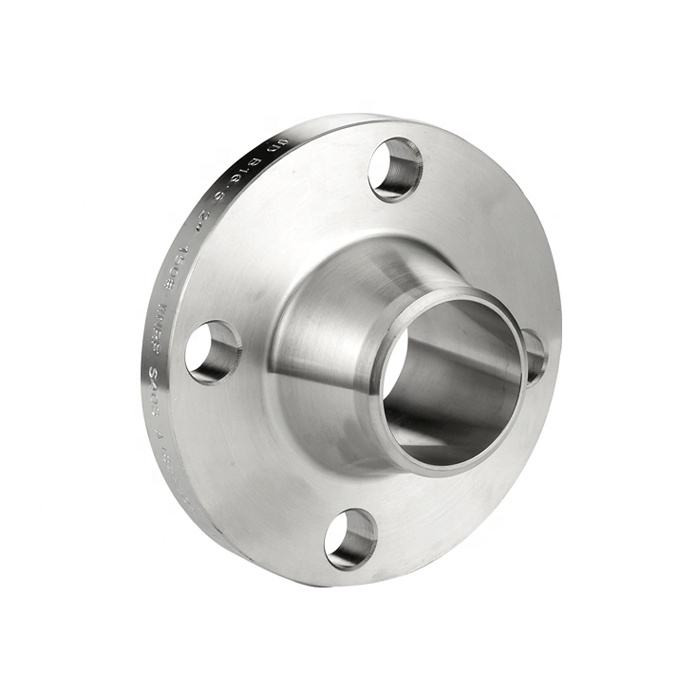

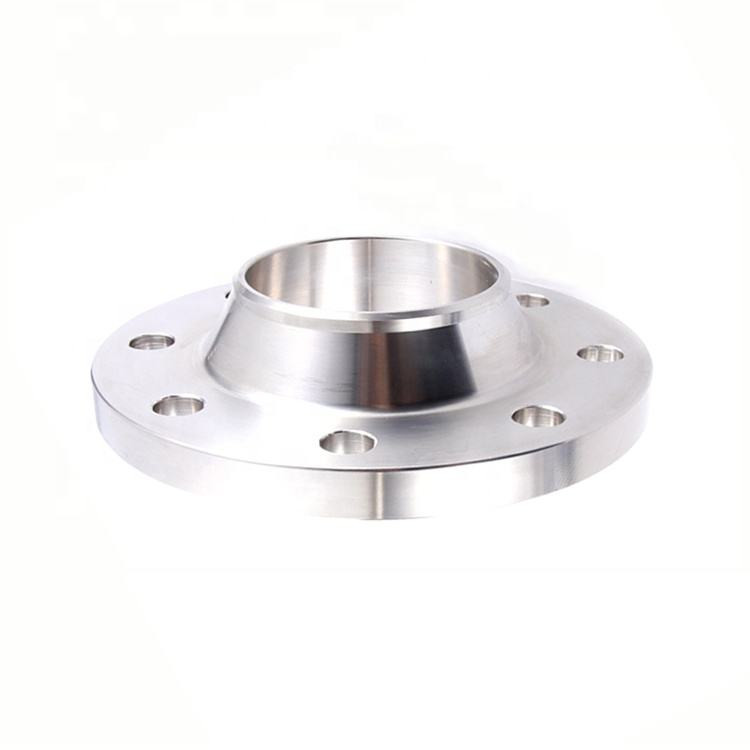

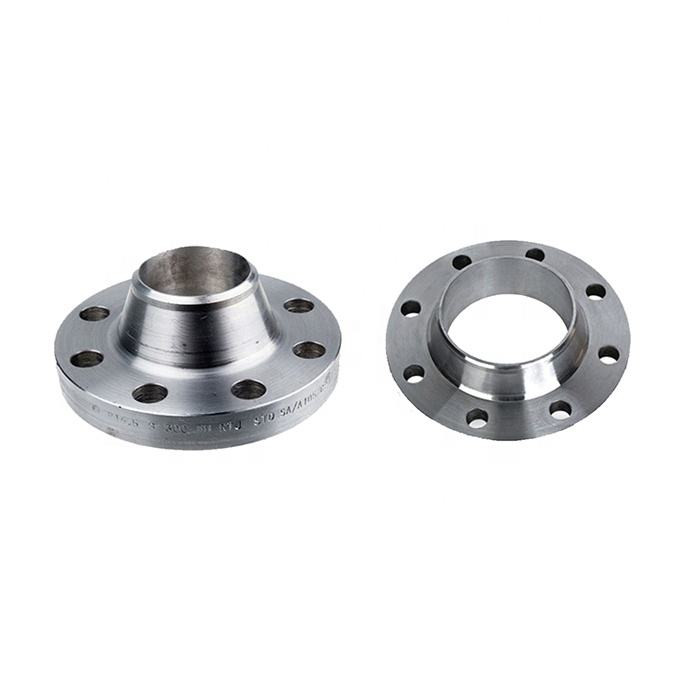

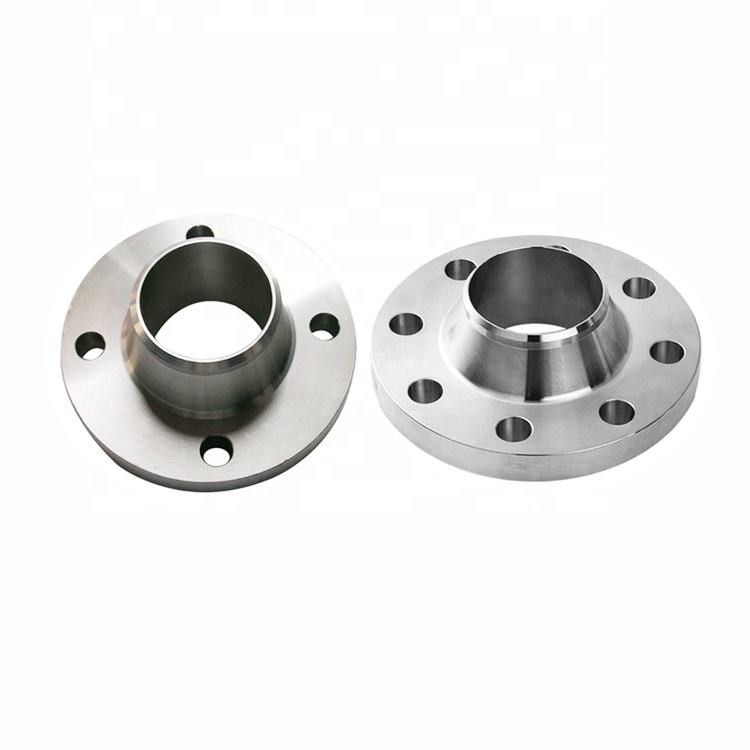

Stainless steel weld neck flanges are distinguished by their long tapered hub and a smooth transition from the flange face to the pipe bore. This design provides reinforcement at the joint, particularly beneficial in applications involving high pressures and temperatures. The tapered hub of the flange also facilitates smooth fluid flow and reduces turbulence, which can minimize erosion and corrosion within the piping system.

Hub and Welding Zone: The weld neck flange has a long neck (tapered hub) that provides structural strength and support around the pipe joint. The welding area extends gradually from the neck to the pipe, ensuring a strong and leak-proof connection.

Raised Face or Flat Face: Depending on the application and sealing requirements, weld neck flanges can have a raised face or a flat face. A raised face allows for the placement of a gasket between mating flanges to achieve a tight seal, while a flat face is used with flat gaskets or in applications where the flange faces are to be bolted directly together without a gasket.

Bolt Holes: Like other flange types, weld neck flanges feature evenly spaced bolt holes around the perimeter to secure the flange to the mating flange or equipment. The number and size of bolt holes vary based on the flange size and pressure rating.

Strength and Durability: Stainless steel weld neck flanges are robust and designed to withstand high pressure and temperature conditions, ensuring long-term reliability.

Leak Resistance: The welded connection between the flange and pipe reduces the risk of leakage compared to other flange types.

Corrosion Resistance: Stainless steel's inherent resistance to corrosion makes weld neck flanges suitable for harsh environments with exposure to moisture, chemicals, and varying temperatures.

Stainless steel weld neck flanges are critical components in industrial piping systems, offering superior strength, durability, and resistance to corrosion. Their design features, such as the tapered hub and weld preparation, ensure secure and leak-free connections in high-pressure applications across various industries. Whether in oil and gas, chemical processing, power generation, or water treatment, stainless steel weld neck flanges play a pivotal role in maintaining the integrity and efficiency of piping systems worldwide.
