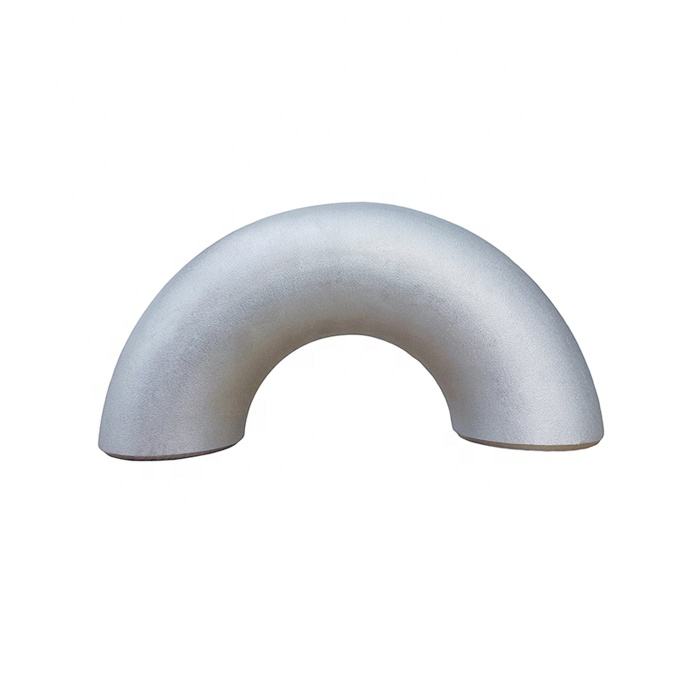

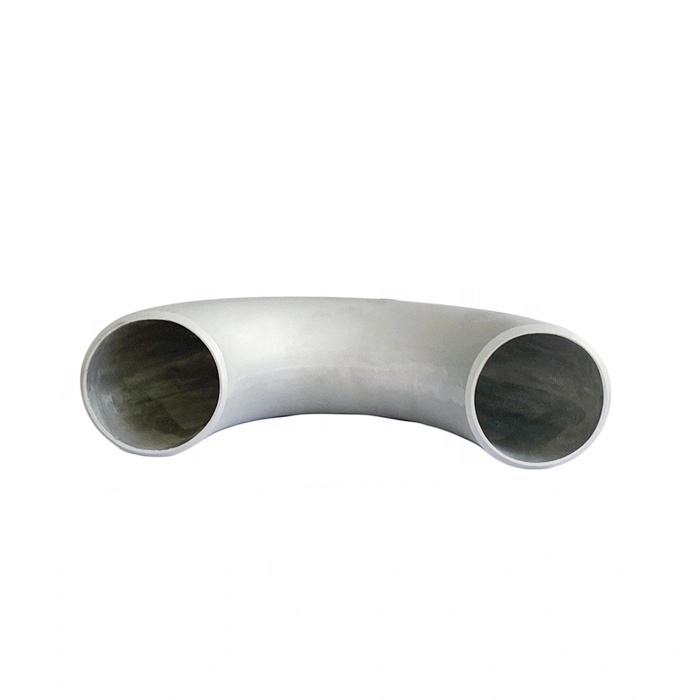

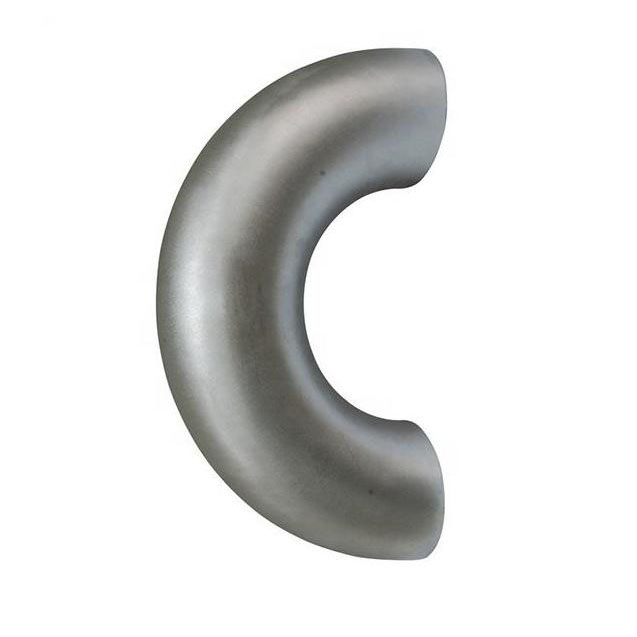

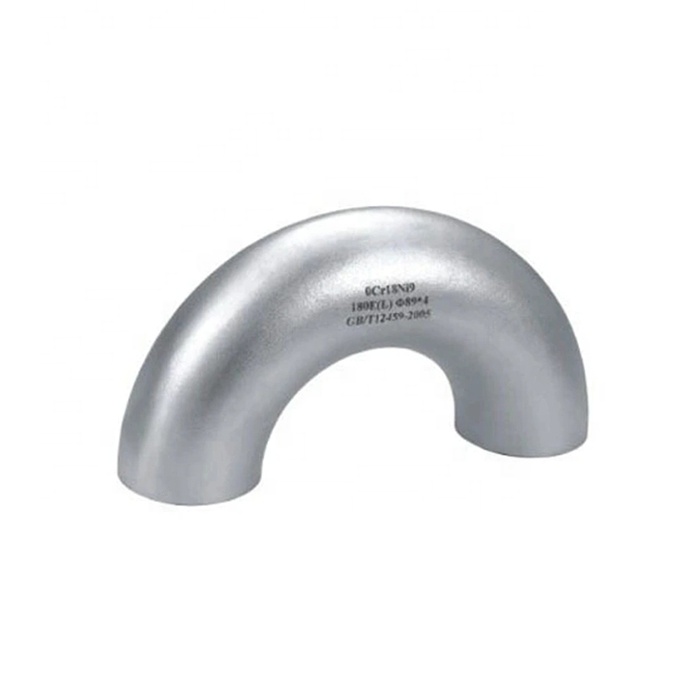

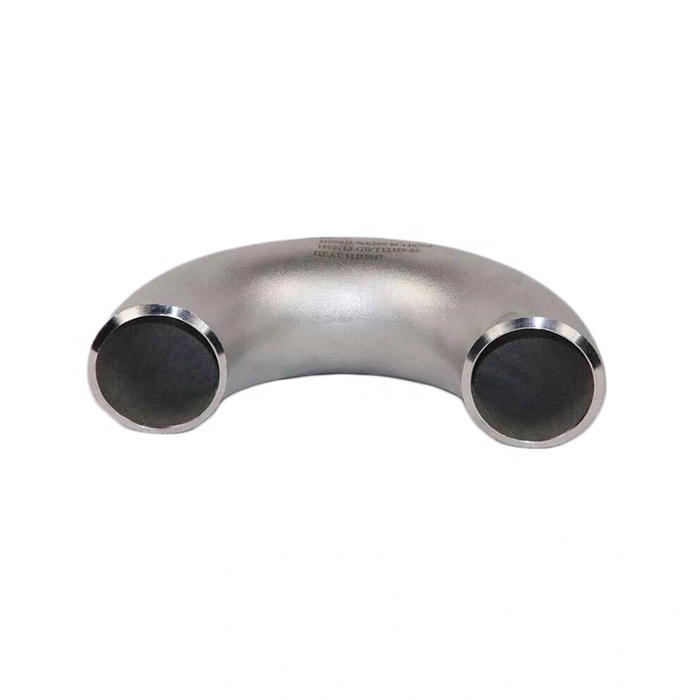

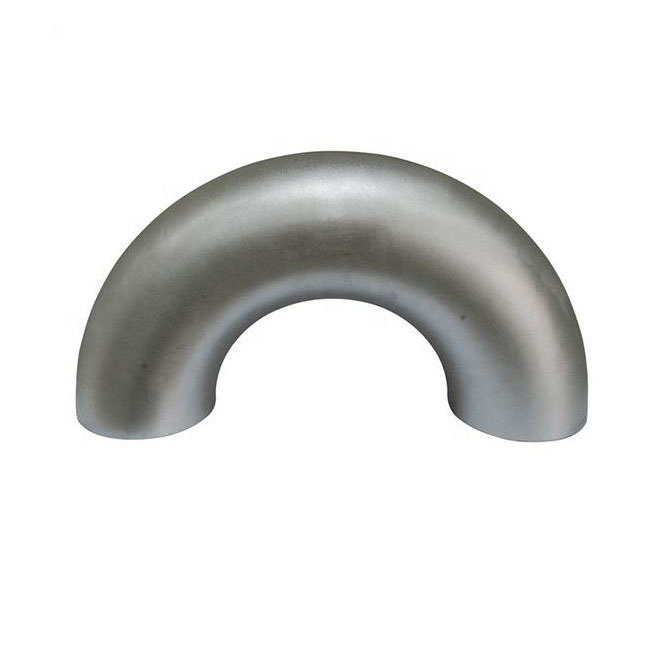

Long radius 180 Degree Butt Welded Elbow Stainless steel bend

Long radius 180-degree stainless steel elbows are typically crafted from high-quality stainless steel alloys such as Grade 304 or Grade 316. These materials are chosen for their exceptional corrosion resistance, high temperature tolerance, and mechanical strength, making them suitable for a wide range of demanding industrial applications. The stainless steel construction ensures durability and longevity even in harsh environments where corrosion resistance is paramount.

The design of a long radius 180-degree elbow features a longer radius than its short radius counterpart, which allows for a smoother flow of fluids or gases. This design characteristic helps in reducing frictional resistance and pressure drop, thereby enhancing the efficiency of fluid handling systems. The 180-degree bend enables a complete reversal in the direction of flow, making it ideal for applications where pipeline layout or operational requirements dictate a full turnaround without the need for additional fittings or space.

Long radius 180-degree stainless steel elbows find extensive use across various industries including petrochemical, chemical processing, oil and gas refineries, pharmaceuticals, food processing, and water treatment plants. They are employed in pipelines carrying fluids such as water, chemicals, gases, and slurries. These elbows are crucial in systems where maintaining smooth and uninterrupted flow is critical to operational efficiency and safety.

Manufacturing standards for long radius 180-degree stainless steel elbows adhere to international specifications such as ASTM, ASME, ANSI, DIN, and JIS. These standards ensure consistency in dimensions, material quality, and performance characteristics. Specifications include pipe diameter (DN), wall thickness, and connection types (welded, threaded, flanged) tailored to meet specific project requirements and operational conditions.

Proper installation of long radius 180-degree stainless steel elbows involves aligning the fitting correctly within the pipeline and securely fastening it according to the chosen connection method. Regular inspection and maintenance are essential to ensure the elbows remain structurally sound, free from leaks, and capable of meeting operational demands over their service life.

In conclusion, long radius 180-degree stainless steel elbows play a critical role in optimizing fluid flow and direction within industrial piping systems. Their robust construction, coupled with superior performance characteristics, makes them indispensable components in ensuring efficient and reliable operation across diverse industrial sectors.
